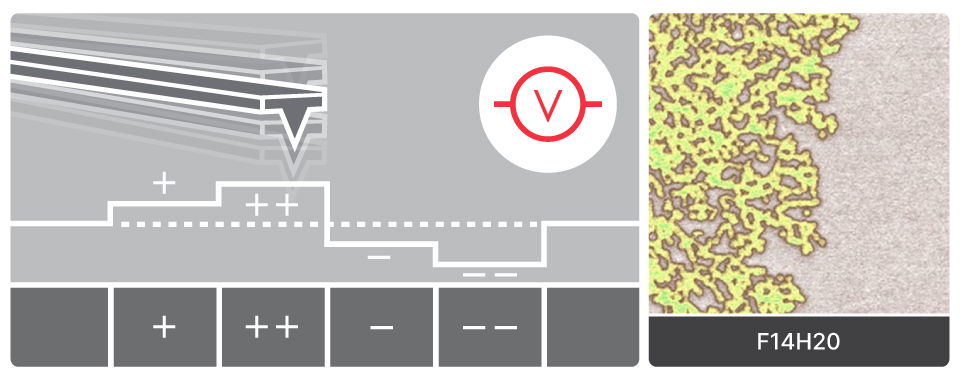

Heterodyne KPFM is an advanced method in Kelvin Probe Force Microscopy that increases sensitivity and spatial resolution using heterodyne frequency detection.

Key Features

- Using Internal Lock-in Amplifier

- No additional hardware and free software for All FX-Series

- Ease of use

- Better signal-to-noise ratios

Heterodyne KPFM

Heterodyne KPFM shifts the CPD signal away from the cantilever’s resonance frequency, minimizing noise and allowing for precise nanoscale measurements.

Introduction

In the realm of atomic force microscopy (AFM) measurement techniques, kelvin probe force microscopy (KPFM) stands out as the most widely adopted method due to its ability to deliver precise, quantitative data on a sample's surface potential and work function, making it invaluable for both scientific research and industrial applications. Traditional KPFM methods, particularly amplitude-modulation KPFM (AM-KPFM), laid the groundwork for measuring the contact potential difference (CPD) between an AFM tip and a sample. However, rising demands for higher sensitivity and spatial resolution have exposed the limitations of AM-KPFM, such as noise susceptibility and constrained resolution, leading to the development of advanced methods like Sideband and Heterodyne KPFM (Table 1).



Table 1. Comparison between AM-, Sideband, and Heterodyne KPFM

Table 1 outlines the key principles, sensitivity, and suitability of the three KPFM modes, highlighting their relative advantages and limitations.

Fundamentals of Heterodyne KPFM

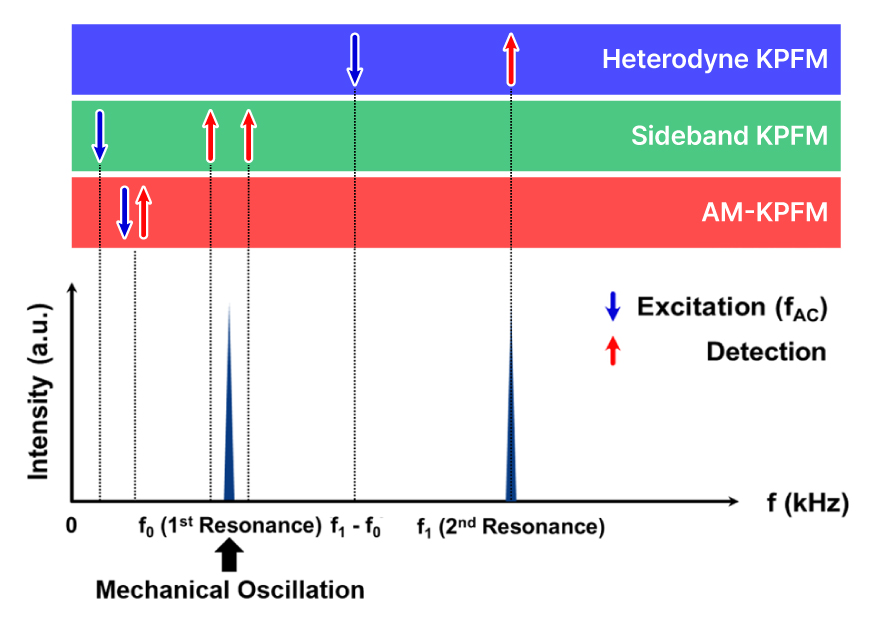

The heterodyne effect enables localized detection and clean signal isolation, significantly improving the sensitivity and spatial resolution of surface potential measurements. Unlike AM-KPFM and Sideband KPFM, Heterodyne KPFM shifts the CPD signal away from the cantilever’s resonance frequency, minimizing noise and allowing for precise nanoscale measurements.

Performance Evaluation of KPFM Modes

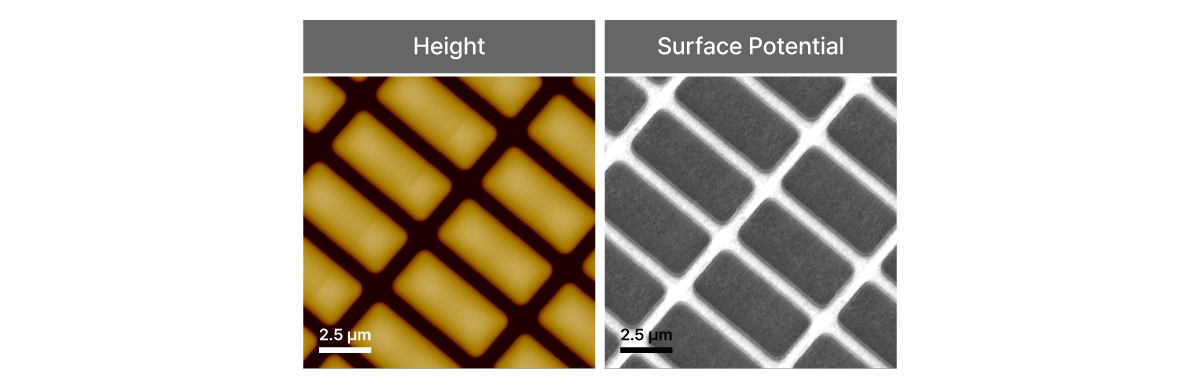

This evaluation compares the modes in terms of their technical capabilities, emphasizing spatial resolution and noise sensitivity. Two materials, gold (Au) and aluminum (Al), were tested in a controlled Au-Al-Au electrode configuration to compare measurement performance.

Figure 2 illustrates KPFM potential line profiles, highlighting the limitations of AM-KPFM's sensitivity to long-range forces and the superior spatial resolution of Heterodyne KPFM.

F₁₄H₂₀ Measurements

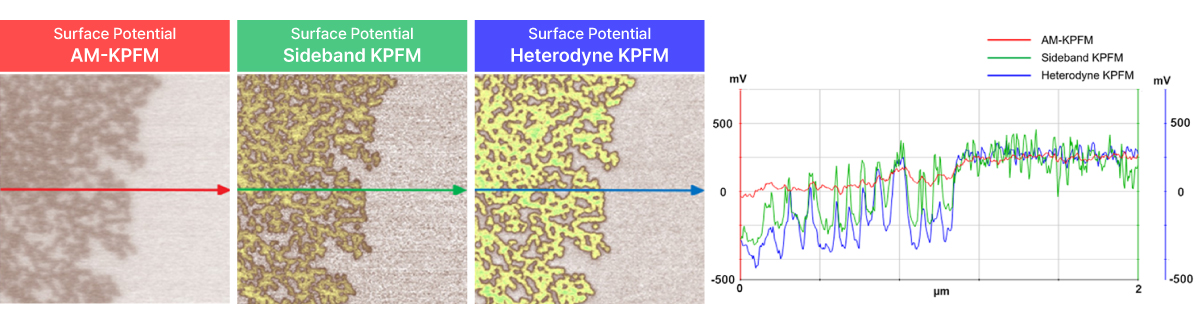

Figure 3.

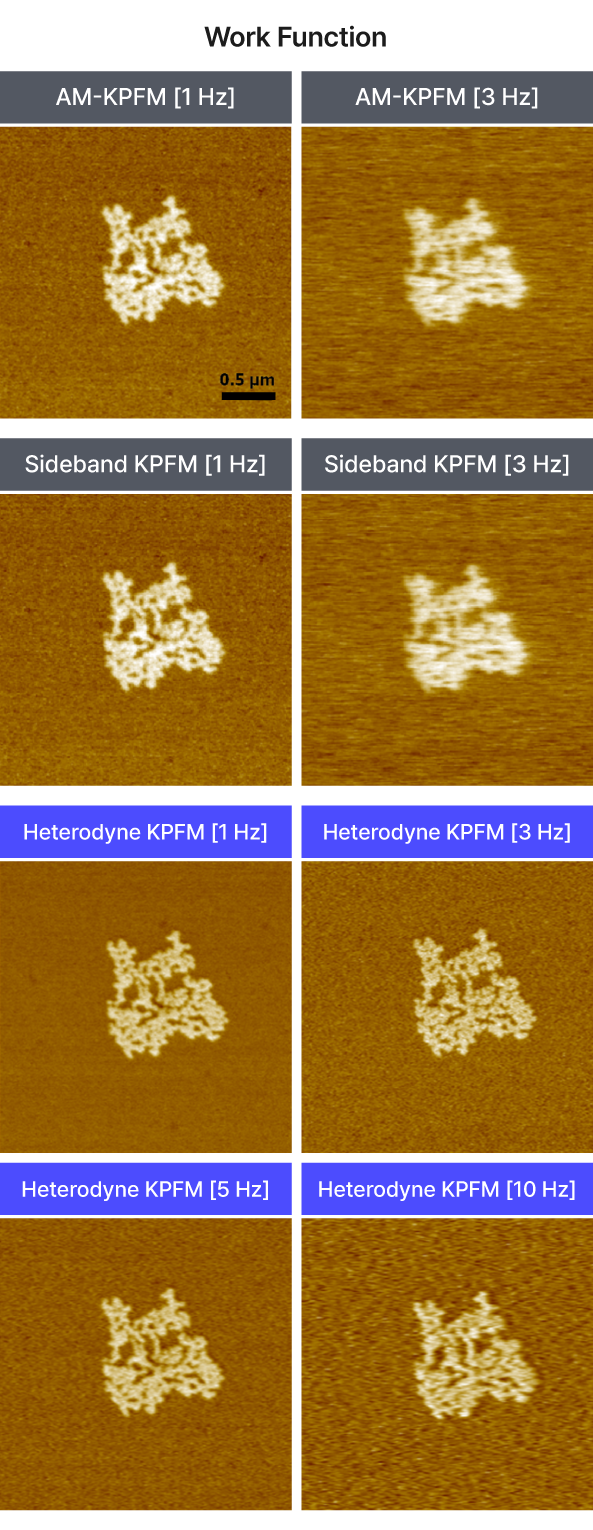

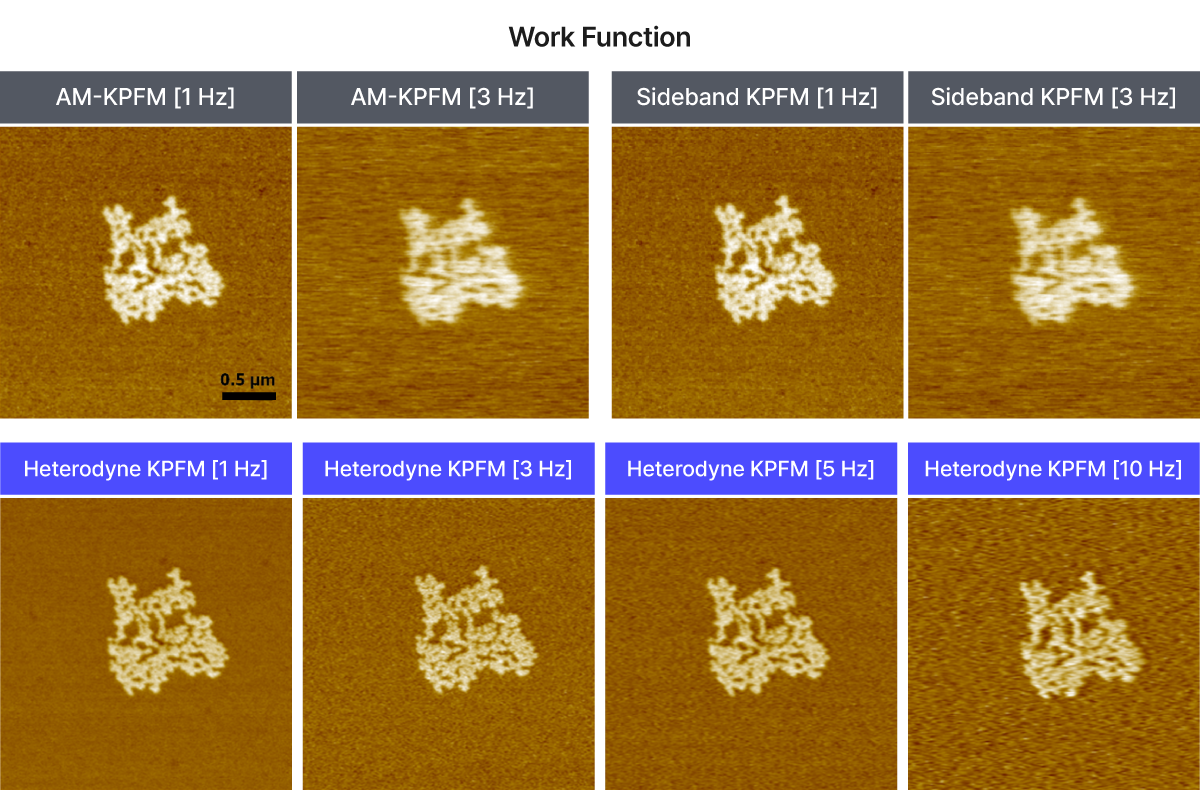

Figure 3 illustrates distinct differences in performance and resolution among the three KPFM modes when measuring F₁₄H₂₀. Heterodyne KPFM demonstrated unparalleled precision, effectively resolving nanoscale cluster boundaries (Figure 4), surpassing the capabilities of Sideband KPFM.

Figure 4.

Conclusion

By isolating surface potential signals from noise and resolving nanoscale details, such as F₁₄H₂₀'s cluster boundaries, Heterodyne KPFM demonstrates unparalleled suitability for precision-dependent applications. These findings emphasize the importance of selecting the appropriate KPFM mode based on the sample's characteristics and analysis requirements.
