Twisted bilayer graphene forms a moiré superlattice due to the rotational misalignment between two graphene layers, resulting in characteristic periodic patterns.

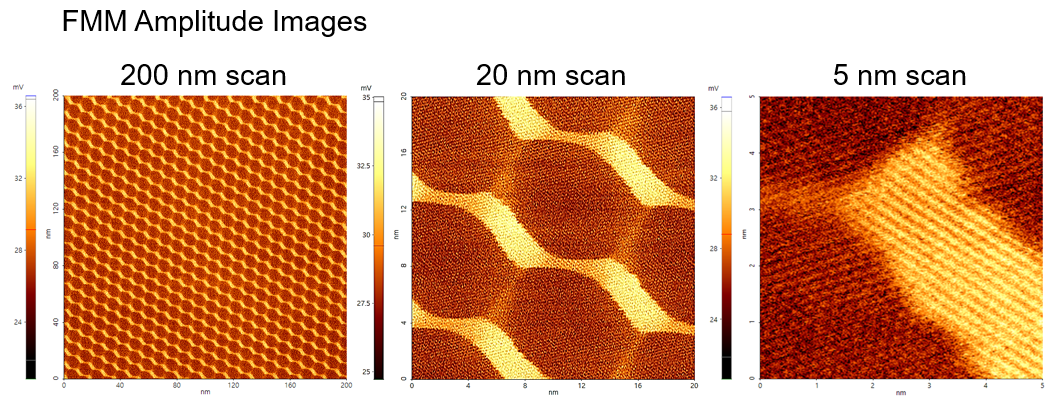

As the scan size decreases from 200 nm to 5 nm, moiré patterns appear at larger scales and the atomic lattice is resolved at smaller scales.

Scan Conditions

- System: NX1

- Scan Mode: FMM

- Scan Size: 200 nm×200 nm, 20 nm×20 nm, 5 nm×5 nm

- Scan Rate: All 12 Hz

- Pixels: All 512×512

- Cantilever: AD-2.8-AS
(k=2.8 N/m, f=65 kHz)
