MoS2 Single Crystal

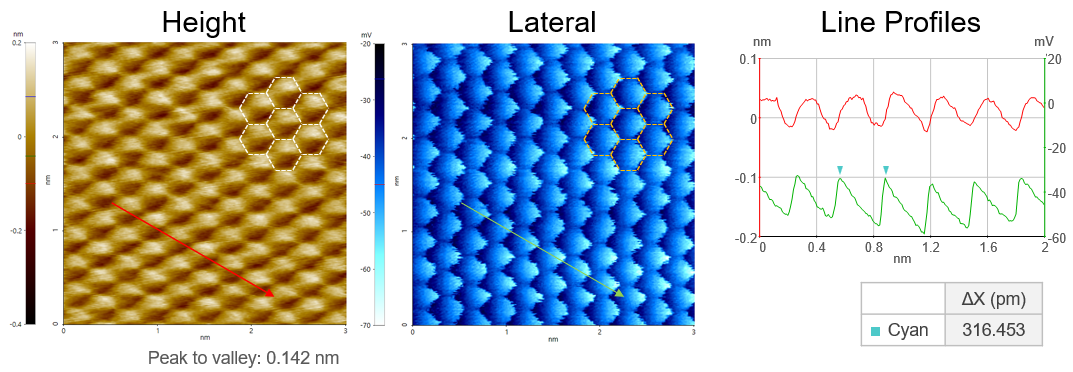

MoS2 single crystal, a layered two-dimensional material with a hexagonal lattice structure, is measured at a 3 nm scan size, and the atomic lattice is observed in both height and lateral signals under low-noise conditions.
The measured lattice spacing (3.164 Å) agrees with the reference MoS2 lattice constant (~3.16 Å), confirming consistent atomic-scale measurement.
Scan Conditions
- System: NX1
- Scan Mode: LFM
- Scan Size: 3 nm×3 nm
- Scan Rate: 16 Hz
- Pixels: 256×256
- Cantilever: AD-2.8-AS
(k=2.8 N/m, f=65 kHz)
Application
Related Modes
Lateral Force Microscopy (LFM)
