HOPG
HOPG (Highly Oriented Pyrolytic Graphite) is a layered material with a well-defined hexagonal lattice structure, commonly used as a reference sample for atomic-scale imaging.

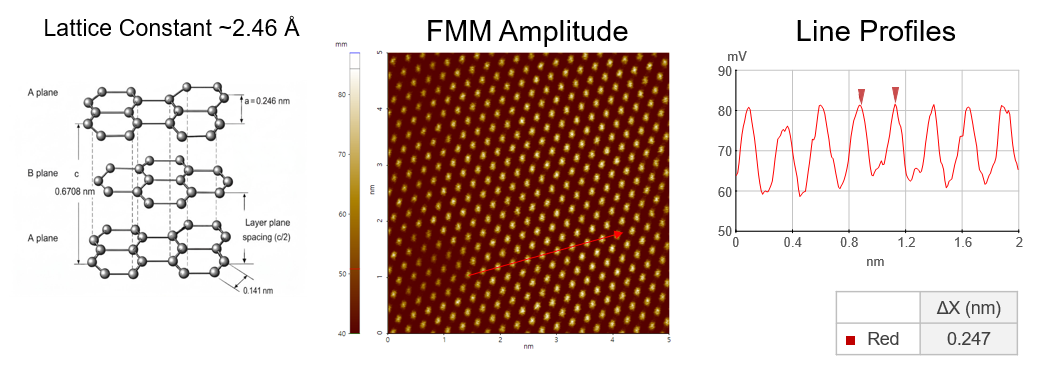

Atomic lattice is measured by FMM at a 5 nm scan size, and the measured lattice spacing agrees with the reference value of graphite (~2.46 Å).
Scan Conditions
- System: NX1
- Scan Mode: FMM
- Scan Size: 5 nm×5 nm
- Scan Rate: 12 Hz
- Pixels: 512×512
- Cantilever: AD-2.8-AS
(k=2.8 N/m, f=65 kHz)
Application
Related Modes
Force Modulation Microscopy (FMM)
