Twisted Bilayer Graphene on hBN

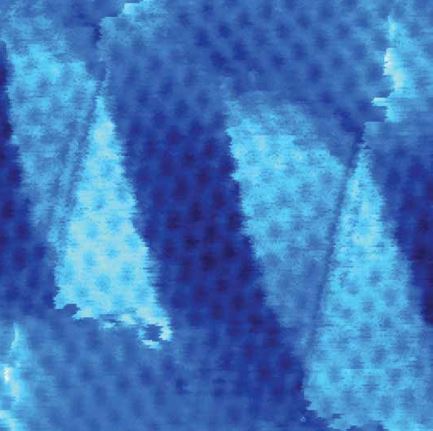

A Twisted Bilayer Graphene on hBN was measured in Conductive AFM to acquire current image. The image shows the morie pattern between Twisted bilayer graphene and hexagonal boron nitride.
Scanning Conditions
- System: Park FX40
- Scan Mode: Conductive AFM (Channel: Current)
- Scan Rate: 3 Hz
- Scan Size: 100 µm × 100 µm
- Pixel Size: 256 × 256 pixels
