Block Copolymer

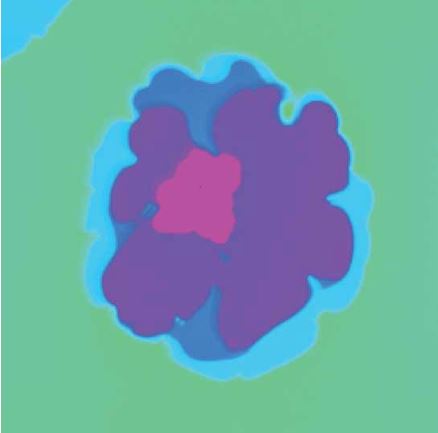

A Block Copolymer was measured in True Non-contact™ mode to acquire surface topography. The scan data revealed a peak-to-valley height difference of 150nm, and the image shows the floral-pattern of the Block Copolymer.
Scanning Conditions
- System: Park FX40
- Scan Mode: True Non-contact™ mode
- Scan Rate: 0.3 Hz
- Scan Size: 40 µm × 40 µm
- Pixel Size: 256 × 256 pixels
- Peak-to-valley: 150 nm
