Park NX-Mask

An AFM-based EUV Mask Repair and More

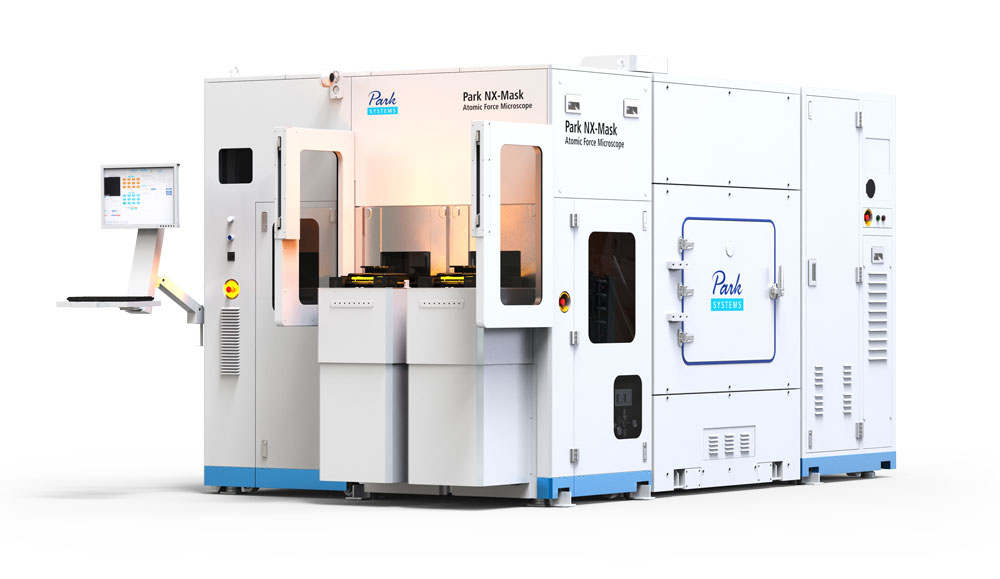

Park NX-Mask is the new generation photomask repair system that addresses
the latest challenges of shrinking device geometries and increasing photomask
complexities. Park NX-Mask is an innovative tool for the repair of high-end
EUV Mask incorporating advanced atomic force microscopy technology.
It provides all in one solution from auto defect review to repair of defects to
verification of the repair, accelerating the throughput at unprecedented repair efficacy.

  • No risk of damage and seamless repair of any type of defects
  • Compatible with a dual pod for handling EUV masks
  • All-in-one solution for locating defects and post-repair verification



Repair of Defects with A Superior Method Completely Safe

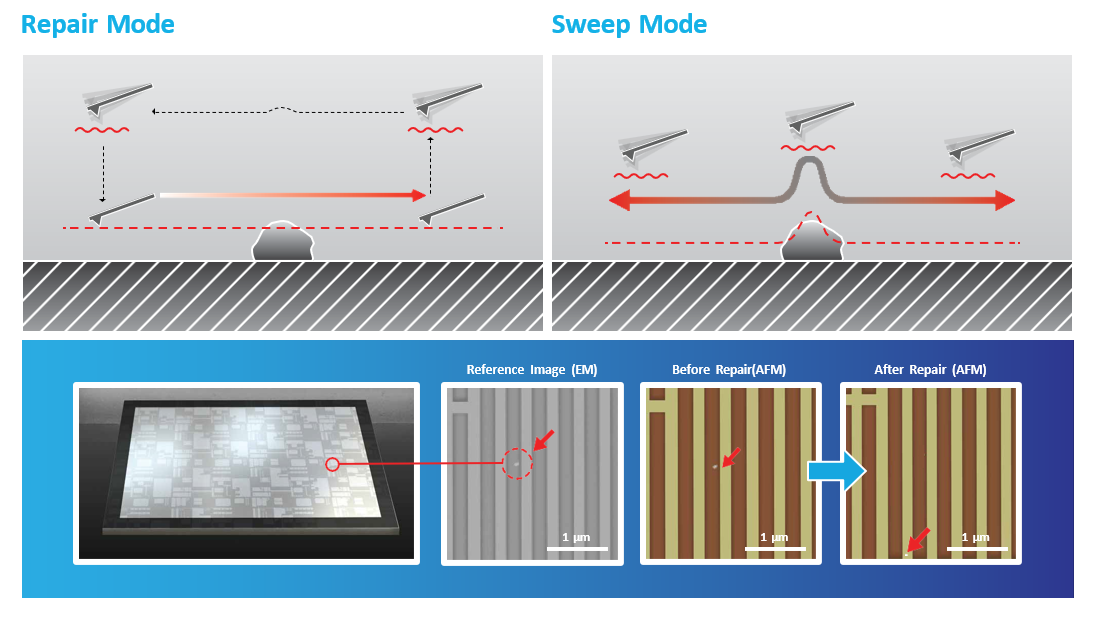

Debris such as tin (Sn) particles from an EUV light source may reach the photomask and reduce light reflectivity and disable accurate imprinting process. The EUV Mask defect effects reduce the reflectivity and disable the accurate imprinting process. Park NX-Mask utilizes its proven nano-mechanical AFM technology to find and remove extraneous particles and the complexity of pattern defects in a completely safe manner. Unlike conventional photomask repair systems, Park NX-Mask executes the repair without causing any damage or perturbing the mask surface.

Safe


  • No beam charging
  • No chemical use
  • No vacuum required

Superior


  • Nanometric resolution and accuracy of repair
  • Survey scan to repair to verification within a system
  • Economical-lower cost of ownership



Inline Production for Automatic and
Seamless Repair

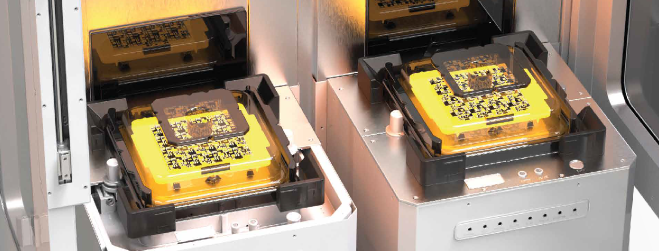

Park NX-Mask offers optimized solutions that support dual pods for handling EUV masks on inline production.

normal hover



Non-contact AFM Technology for Locating Defects and Post-repair Verification

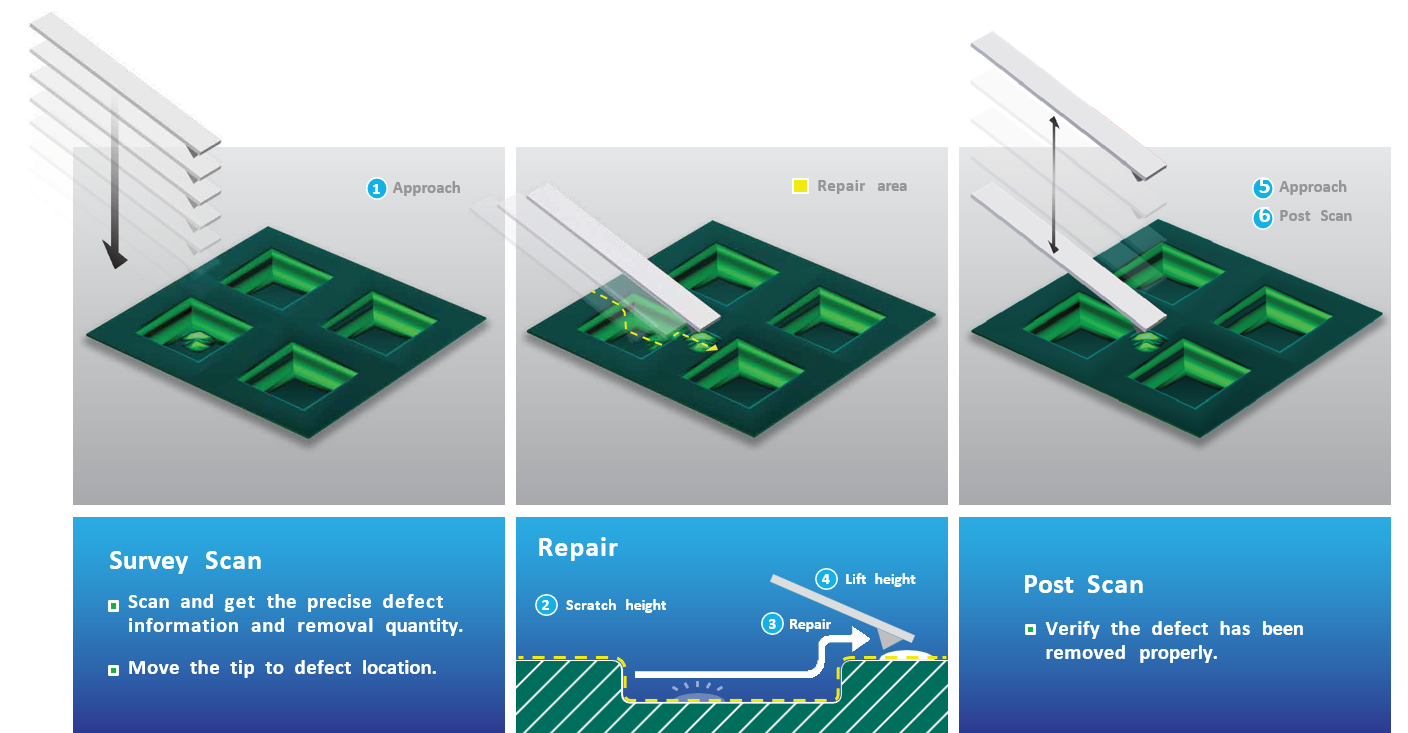

Park NX-Mask first performs a survey scan to locate the defects using its proprietary non-contact AFM technology that offers the safest method of scanning. From the survey scan, Park NX-Mask learns the quantity and precise location of the defects, and information on each of those particles and faults. Following the repair, Park NX-Mask employs its non-contact AFM technology to conduct post-repair verification, generating a nanoscale 3D topography and other metrology data of interest such as surface roughness.
