Artificial Spin Ice lattice

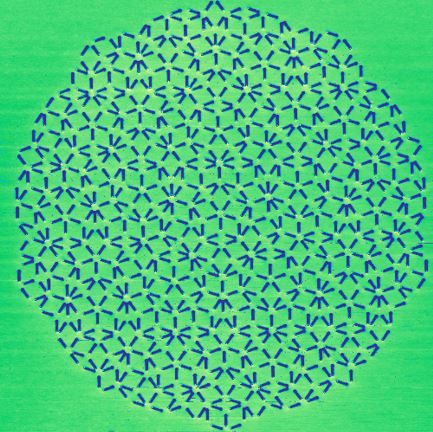

An artificial spin ice lattice was measured using Magnetic Force Microscopy (MFM), providing phase information of the magnetic response. The image highlights the characteristic ball-like arrangement of the artificial lattice.
Scanning Conditions
- System: NX20 300mm
- Scan Mode: Magnetic Force Microscopy (Channel: MFM Phase)
- Scan Rate: 0.5 Hz
- Scan Size: 33 µm × 33 µm
- Pixel Size: 2048 × 2048 pixels
