Ps-b-PMMA Block Copolymer

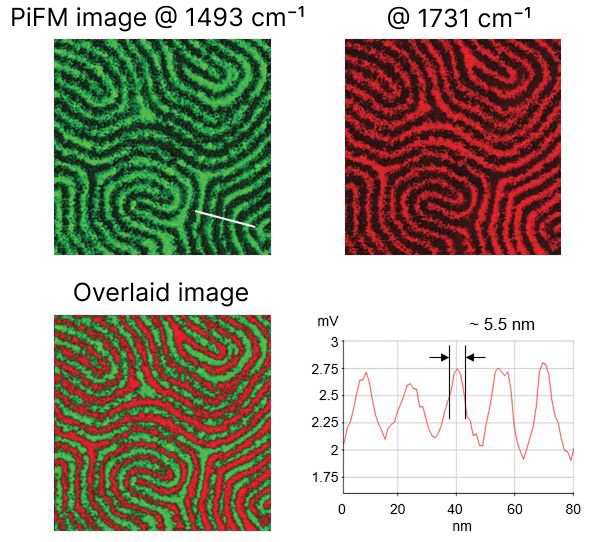

This slide shows a Ps-b-PMMA block copolymer sample measured with PiFM.
The measurement reveals clear phase-separated domains, where chemical contrast from PiFM highlights the distribution of the polymer blocks.
This representative example demonstrates how PiFM provides both morphological and chemical information within a single nanoscale image.
Scanning Conditions
- System: AFM-IR
- Scan Mode: PiFM (Channel: PiFM Amplitude)
- Scan Rate: 0.1 Hz
- Scan Size: 300 µm × 300 µm
- Pixel Size: 256 × 256 pixels
