原子力显微镜扫图汇集

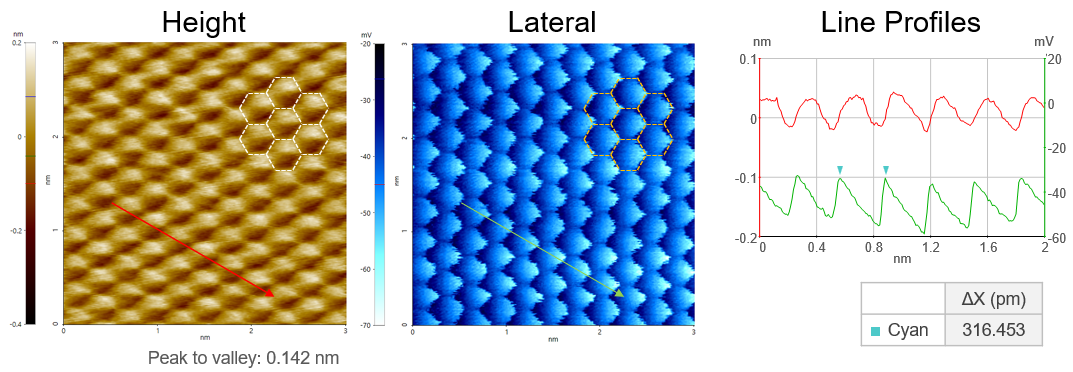

MoS₂ single crystal, a layered two-dimensional material with a hexagonal lattice structure, is measured at a 3 nm scan size, and the atomic lattice is observed in both height and lateral signals under low-noise conditions.

The measured lattice spacing (3.164 Å) agrees with the reference MoS₂ lattice constant (~3.16 Å), confirming consistent atomic-scale measurement.

Scan Conditions

- System: NX1

- Scan Mode: LFM

- Scan Size: 3 nm×3 nm

- Scan Rate: 16 Hz

- Pixels: 256×256

- Cantilever: AD-2.8-AS
(k=2.8 N/m, f=65 kHz)
